4ft x 8ft WER-G2513UV Tile Printing Machine UV Printer
A new high-performance big format entry-level model flatbed printer – expanding possibilities in the printing business.
WER-G2513UV is the big format flatbed printer equip with industrial Ricoh Gen5 print heads. It offers the ability to produce a diverse range of prints for background wall, floorboards, ceramic tiles and other interior decoration applications, expanding the possibilities in the big size materials printing business.
-
Uganda Patrick Ka*** 002***1573 WER-ES160 07/02/2019 -
Australia Malcolm Mc*** 006***6 293 WER-ET6090UV 07/04/2019 -
Ecuador g&h imp*** 593***3379 WER-ES3202I 07/05/2019 -
Peru Cesar Ch*** 005***8 727 WER-ET6090UV 07/08/2019 -
Italy Dom*** Raco 39-***8518 WER-ED6090T 07/09/2019 -
Netherlands Hielko Bo*** 31 7***8810 WER-E3055UV 07/10/2019 -
Greece Tasos 302***4291 WER-E3055UV 07/11/2019 -
South Africa Migr*** 002***0693 WER-EW1802 07/12/2019 - Ecuador Clinic*** 005***5691 WER-ES1802 07/15/2019
-
Kyrgyzstan Sergy 996***7607 WER-E3055T 07/17/2019 -
Mexico Juan U*** 181***4006 WER-ES160 07/18/2019 -
Argentina Daikcom S*** 005***4444 WER-ES1802 07/19/2019 -
Ghana Ato Fer*** 0023***3577 WER-K3208I 07/22/2019 -
Qatar Mr.Kiran 009***4147 WER-ED6090UV 07/23/2019
Specifications Of WER-G2513UV Grand Format Flatbed UV Printer
| Printer Model | WER-G2513UV | |
| Print technology | Intelligent variable ink drops technology, grey scale | |
| Printhead Number | Ricoh GEN5 double color printhead 2*640 1280 nozzles | |
| Resolution | 1200*1200DPI 7-21 pl variable ink drops, photo degree output quality, minimum 2pt letter | |
| Printing Speed | Fast Mode | 48 sqm/h |
| Production Mode | 36 sqm/h | |
| Quality Mode | 24 sqm/h | |
| Ink Supply System | Ink Model | UV curing inks |
| Ink Color | C M Y K LC LM W V | |
| Ink Capacity | 1L(2.5L Ink tank) | |
| System Design | Vacuum Table | hard oxydic vacuum suction platform |
| Max.Media Size | 2.55*1.35*0.065m | |
| Max.Print Size | 2.51*1.26m | |
| Data Port | 3.0 USB | |
| Input Format | Adobe Postscript Level3, PDF,JPEG,TIFF,EPS,AI | |
| RIP | Maintop/Photoprint/ONYX Thrive V11.1/Caldera 10 | |
| Power Supply | two phase electric, 220V AC,50/60Hz, 20V | |
| Power | 6.5KW | |
| Air Pressure | Max.Air Pressure：120psi/723kpa Peak Flow：100psi/960kpa Pressure time flow 340L/M Continuous flow：100psi/960kpa Pressure time flow28L/M | |
| Environment Temp | 18℃-30℃ | |
| Relative Humidity | 30%-70% (some media request lower relative humidity scope, details according to requirements of relative materials) | |
| Packing & Delivery: | ||
| Elevation Limit | 2.00m | |
| Printer Dimension | 4.48*2.20m | |
| Table Height | 0.93m | |
| Weight | 1950kg | |
| Media Types | Glass, acrylic, wood sheet, ceramic, metal sheet, PVC board, corrugated plate, plastic etc.Almost everything with flat surface | |
| *Print time does not include data transfer, equipment preheating, material loading and cleaning time. | ||
| *Print speed is got under the company’s standard test environment, according to the customer’s print environment, material types and display direction, etc.different conditions, the results will be different. | ||
All steel Frame structure
Using 5mm thick GB 80mm*80mm square tube under the expected, the triangle law of welding structure, base solid deformation. The base plane with high precision gantry milling machine, milling and drilling plane error is small, highly stable and high-precision.

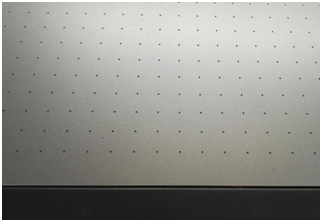

Uniform adsorption platform
Honeycomb partition type adsorption, inlet volume controlling for different media makes printing easier and more efficient. Saves the motor less, low energy consumption strong adsorption. The whole piece of aluminum plate laying smoothness high, bearing is strong.
High Precision mute linear rail guide
Taiwan side rail of silver, long life service, high stability decreases noise while printing. Print length of 2.5meters, the width of 1.3mters, meet the requirements of different sizes of different industries.
High Performance,Rich, Vibrant, Durable Color effect,Price ratio
Adopt 3pcs Ricoh GEN5 print head, GEN5 equipped with 10nozzle, speed can reach 100 square per hour, and with high firing frequency, high print speed,resolution and saturation much better than similar products on the market. Negative pressure system for more smooth ink,ink nozzles is more durable, post-production cost saving, more saving rate is as high as 50%.
| No. | Item | Unit | Discription | Warranty | Function | Price |
| 1 | Printhead | PCs | Ricoh G5 | No | Physical resolution control | |
| 2 | ink damper | pcs | No | Ink filter | $3.29 | |
| 3 | Ink tube | m | No | Ink transfer | ||
| 4 | Decoder Chip | pcs | No | Ink color control chip | $3.99 | |
| 5 | Wiper | pcs | No | Scrape the waste ink | $3.29 | |
| 6 | Ink cap top | pcs | No | Printhead moisturizing | $12.99 | |
| 7 | Syringe | pcs | No | Absorb ink when the ink tube is empty | ||
| 8 | Power cable | pcs | Yes | Power supply | ||
| 9 | Printhead data cable | pcs | No | Printhead data transfer | $2.49 | |
| 10 | Short motor belt | pcs | No | Physical resolution control | ||
| 11 | Raster strip | PCs | No | Printing calibration calculation | $9.99 | |
| 12 | Drag chain | PCs | Yes | Printheadhead position transfer | ||
| 13 | USB cable | m | Yes | Computer connection with printer | ||
| 14 | White ink cycle pump | PCs | No | Front & back position control | ||
| 15 | Front & back sensor | PCs | No | Physical resolution control | ||
| 16 | Printhead | PCs | No | Store ink | ||
| 17 | mainboard | PCs | Yes | Printer data control | $349.99 | |
| 18 | I/O board | PCs | Yes | Input & output board | $159.99 | |
| 19 | Y motor | PCs | Yes | Y drive control | ||
| 20 | Z motor | PCs | Yes | Z drive control | ||
| 21 | X motor | PCs | Yes | X drive control | ||
| 22 | LED UV Lamp | PCs | No | UV Drying system | ||
| 23 | Water cooling box | PCs | No | Water cooling system |
Price description
For the above items, there are some consumable parts (like printheads) and some Non vulnerable parts, so WER company just offered some of the prices as reference. If you need the exact price, please feel free to contact our sales staff.
| No. | Discription | Quantity | |
| 1 | 3*2mm Black ink tube | 2 m | Free |
| 2 | Black ink damper | 2 pcs | Free |
| 3 | Funnel | 5 pcs | Free |
| 4 | Ink cartridge chip | 1 pc | Free |
| 5 | Syringe 10ML | 6 pcs | Free |
| 6 | Syringe 50ML | 3pcs | Free |
| 7 | Decoder | 1 pc | Free |
| 8 | Software and Dongle | 1 set | Free |
| 9 | Cotton swab stick | 6 pcs | Free |
| 10 | Power cable | 1 pc | Free |
Attention
If you have bought our WER printers, in order to avoid the printhead and the mainboard damage because of some wrong operation, you should install the printhead correctly in operation and maintenance according to the following way. And refer to the instructions, or under the guidance of the professional engineers operation.
| Problem Symptoms | Resolutions |
| Static electricity is too high, which will burn out the printer head. | A:The Operator need to mak electrostatic? eliminating treatment and wear the Anti-static devices if possible to prevent the high static load form burning the circuit board inside of the printer head. B: During installation, try not to touch the surface of print head directly. |
| Printer head will be burned out if the USB line linked the printer head incorrectly | Please contact professional technician if you cannot install USB line of the printer head by following the original way of machine or operating instructions. |
| You should check if the outside voltage is stable and the input voltage is matched with the machine | You should check if the outside voltage is stable and the input voltage is matched with the machine. |
| You have to take of the printer head and clean it carefully. | You have to take of the printer head and clean it carefully. |
| There is no response after starting up. | Check power plug fuse |
RIP Software
Our RIP software can be used for EPSON and many other kinds of brand printer for white ink printing
RIP software latest Version Maintop 6.0
1.CMYK+WWWW printing 2. color enhance printing 3. better printing quality 4. easy operating and fast delivery
Guides videos
About guide video: If you meet any question on installing or printing after you bought this machine, please contact our sales to send you the guide video.
Warranty Information
ALL WER printers come with a standard one-year warranty, with the option for a 2 or 3-year warranty extension contingent on registering your device within 60 days of purchase. By then WER or WER’s agent will send a document to you, everything will take effect after signature, thank you!
