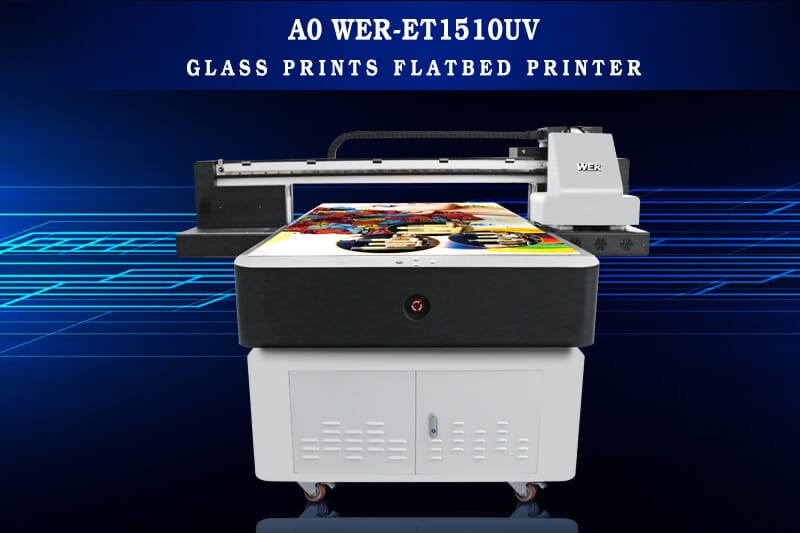

A0 WER-ET1510UV Glass Prints Flatbed Printer
A0 WER-ET1510UV Glass Prints Flatbed Printer

A0 WER-ET1510UV Glass Prints Flatbed Printer



High resolution, low cost, easy operation

With CISS System(continous ink supply system),can avoid the printer lacking ink during the printing process and save 50% ink.

Directly print on the cards,phone covers,wood etc., more convenient than the heat transfer printer, and faster than the silk printer.

Do not need the transfer paper, all process can be finished in one step.

Instant drying system.With the help of the UV system,the images printed on nearly all products and can be dried instantly.



2pcs or 3pcs EPSON TX800

With the scan of the infrared ray, all process is fully automatic, that is why it also be called as the “LAZY PRINTER”

Can print the white ink and 3d embossed image.(can print on any dark background products)



More Applications To Click “HERE

Printing Art

Glass & Acrylic



Glass & AcrylicApplying our varnish inks,you can print on glass home decoration products, jewelry display rack, machine panel, bathroom supplies, home supplies, office supplies, hotel supplies and acrylic products.

Tablets

Leather Products



Leather ProductsWhether real leather or synthetic leather, our equipment can print perfectly.

Key chains

PVC & Plastics



PVC & PlasticsPlastic products are the essential elements of life, a single color has been unable to meet our daily needs, to celebrate the colorful life.

Scooter Board

Wooden Products



Wooden ProductsFloors, walls, tables, cabinets, tables and chairs, doors and windows, wooden crafts and so on.

Polymer Clay

Ceramic & Stones



Ceramic & StonesMakes your life different by printing on ceramic, marble, stones,etc.

Brushed aluminum

Metals



MetalsPrint directly on copper, iron, aluminum, home decor,aluminum alloy,etc.


More Applications To Click “HERE

glass-art

GLASS & ACRYLIC

Applying our varnish inks,you can print on glass home decoration products, jewelry display rack, machine panel, bathroom supplies, home supplies, office supplies, hotel supplies and acrylic products.
Tablets

LEATHER PRODUCTS

Whether real leather or synthetic leather, our equipment can print perfectly.
Key Chains

PVC & PLASTICS

Plastic products are the essential elements of life, a single color has been unable to meet our daily needs, to celebrate the colorful life.
Scooter Board

WOODEN PRODUCTS

Floors, walls, tables, cabinets, tables and chairs, doors and windows, wooden crafts and so on.
Polymer Clay

CERAMIC & STONES

Makes your life different by printing on ceramic, marble, stones,etc.
Brushed Aluminum

METALS

Print directly on copper, iron, aluminum, home decor,aluminum alloy,etc.

The awesome effects of ECO UV Ink

The bravo effects of Eco-friendly varnish UV Ink

Canvas Oil Painting Design-Adorn Your Life

Observing beautiful surface treatment, stereo textures, or 3D embossment effects to create an extraordinary new dimension of “feel the color”. Start your own printing business,and we can teach you how to make texture-designed patterns in our WER COLOR System.

oil printing case

Amazing Ink Color output

Print pictures with stable color and astonishing detail on a good range of promotional gifts.

(1)Produce amazing pictures with CMYK,LcLm,White+Varnish ECO-UV inks
(2)White ink is a brilliant genius color, or to ensure that colors occur on dark or clear objects
(3)Optional pretreatment liquid increases efficiency by preparing the surface of materials like glass and metals for full-color customization
(4)A Continuous Ink Supply System(CISS)keeps ink pigments settling in the ink lines for smooth consistency and density
(5)Automatic nozzle cleaning function ensures extended service life

* For perfect effects, it is strongly advised that users test for adhesion to specific objects before massive final production.

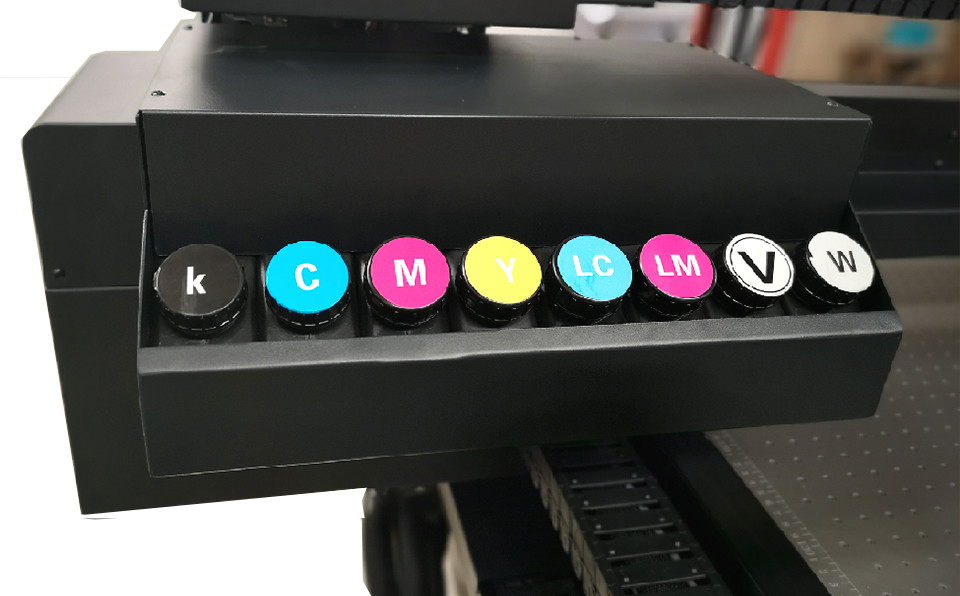

ET1510UV Ink cartridge

A smart, reasonable, and wonderful Machine Experience

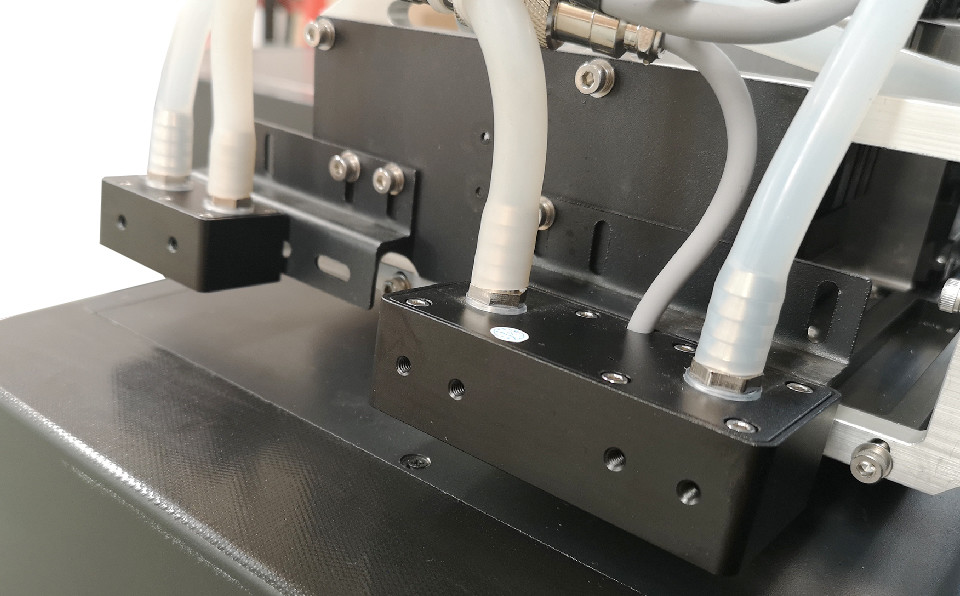

With double sets of low-heat UV LED lights, and self-cleaning ink function, the newly-designed A0 WER-ET1510UV Glass Prints Flatbed Printer is easy to operate and performs clean and cool with a safe operation. In addition to reducing additional machine movements of previous models to give you a more efficient operation, it offers new design advantages to simplify your print process.

ET1510UV LED light

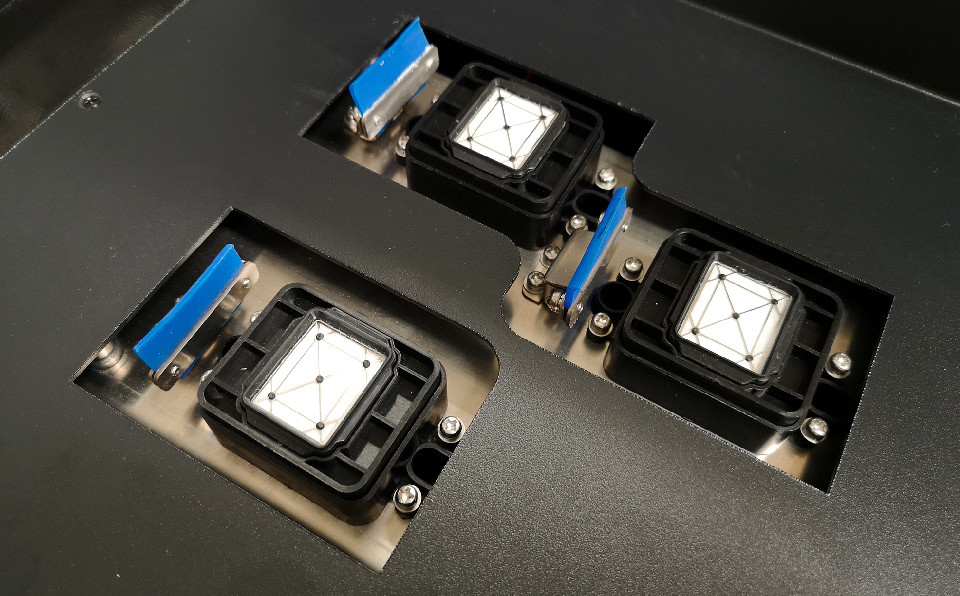

HEAD CLEANING UNIT

Removes any ink remaining on the printheads and cleans the printhead surface to maintain the health and ink cost-efficiency of your printer.

ET1510UV printhead cleaning unit

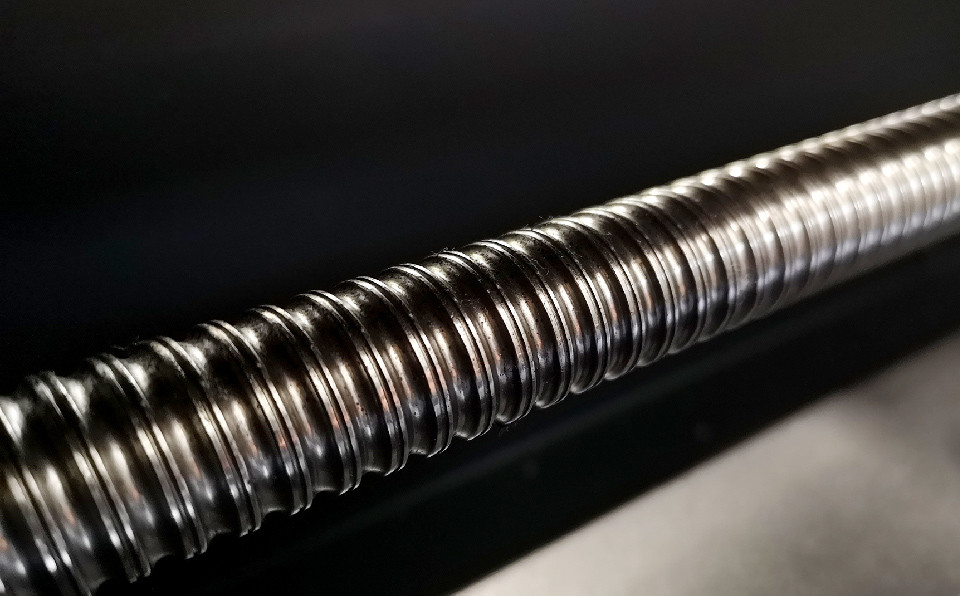

Ball Screw Driving System

Dual sets of ball screw driving system,which ensures stability and continuous color output.

ET1510UV ball screw driving system

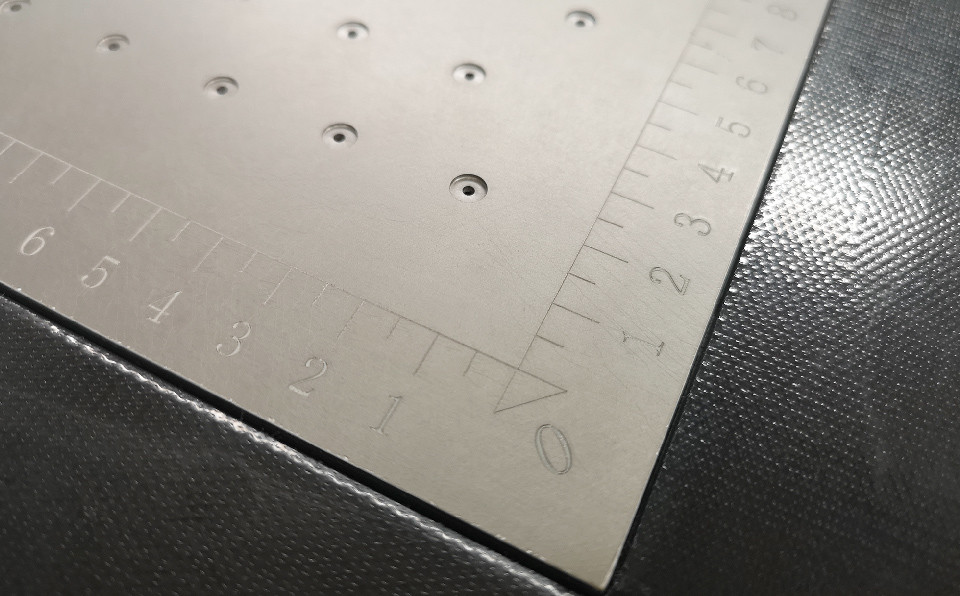

EASY-POSITIONING & Vacuum Suction Platform

Printing platform precise calibration mark,which is easy to simplify your set-up and the alignment of items for printing.

Vacuum Suction System will be your great help

For soft materials, we need the material itself close to the surface of the printing platform.

ET1510UV calibration mark

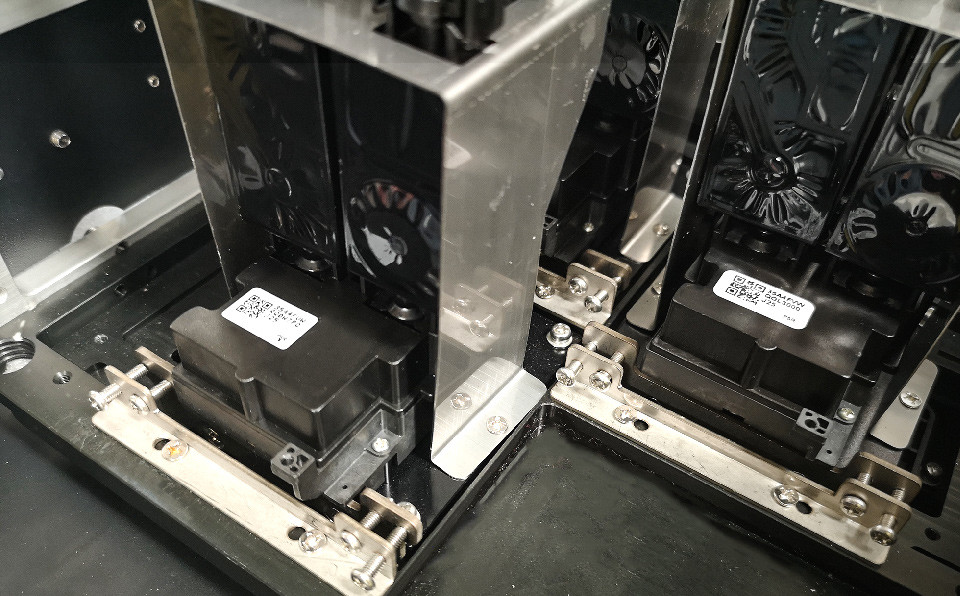

NOZZLE SHIELD FUNCTION

If a nozzle on the printhead is clogged and misfiring, you can reduce losses with the ability to turn off a specific nozzle band to allow continued production.

ET1510UV printhead
Buyer’s Country Name Telephone Product Type Transaction Date

Saudi Arabia Ib… 97…398 WER-E3055UV 07/25/2019
Nepal Kr… 98…007 WER-EW160 07/27/2019
Saudi Arabia Re… 97…472 WER-ED6090UV 07/29/2019
Angola Al… 24…729 WER-ED6090UV 07/30/2019
Uganda An… 25…239 WER-ES160 08/02/2019
Nigeria Ay… 80…543 WER-ET2513UV 08/04/2019
Spain Ru… +3… 91 WER-E3055UV 08/06/2019
United Kingdom Fa… 78…313 WER-ET6090UV 08/07/2019
Tuvalu Ta… 68…181 WER-ES160 08/09/2019
Colombia An… 57…920 WER-E3055UV 08/12/2019
Kenya Ed… 25…777 WER-E3055T 08/14/2019
United Kingdom Si… 33…219 WER-E3055UV 08/15/2019
Ethiopia Da… 25…090 WER-ES160 08/18/2019
South Africa Ju… 27…948 WER-ES160 08/19/2019
America Ch… 95…780 WER-E3055UV 08/21/2019
India So… 99…052 WER-E3055UV 08/23/2019
Belgien Ma… 32…172 WER-E3055UV 08/25/2019
Egypt Bi… 20…364 WER-E3055T 08/26/2019
Netherlands Ma… 25…067 WER-ES160 08/28/2019
Kenya Ma… 25…900 WER-E3055T 08/30/2019
Greece Le… 30…300 WER-E3055T 09/01/2019
Lithuania al… +3…294 WER-E3055UV 09/03/2019
Croatia Fi… 99…313 WER-E3055UV 09/06/2019
Mexican al… 15…583 WER-ED6090UV 09/08/2019
Thailand pa… +3…294 WER-ES160 09/10/2019
Turkey Ha… 90…012 WER-E3055UV 09/11/2019
Mexican al… 15…583 WER-E3055UV 09/12/2019
Colombia he… 32…591 WER-E3055T 09/14/2019
Japan Re… 25…413 WER-E3055UV 09/15/2019
Australia Ma… 40…493 WER-E3055UV 09/17/2019
Belgien se… 32…372 WER-ES160 09/19/2019
German He… + …655 WER-ED6090UV 09/20/2019
Australia Go… 47…629 WER-E6090T 09/22/2019
Kuwait Hu… 00…052 WER-E3055UV 09/23/2019
America ja… 22…320 WER-E3055UV 09/24/2019
Australia Me… 47…629 WER-E3055UV 09/26/2019
Kenya Ro… +2…991 WER-E3055T 09/28/2019
Netherlands Ro… 98…942 WER-E3055UV 09/29/2019
Kuwait Ca… 96…894 WER-E3055T 09/30/2019
Kenya jo… 70…720 WER-E3055T 10/08/2019
Mozambique Jo… 84…547 WER-E3055T 10/09/2019
Turkey Ka… 53…681 WER-E3055UV 10/10/2019
Spain lu… 25…778 WER-E3055T 10/12/2019
Israel Ma… 97…868 WER-ET1510UV 10/14/2019
United Kingdom Ja… 75…282 WER-ET1510UV 10/15/2019
Tanzania Eg… 65…038 WER-ES160 10/17/2019
Ghana Sh… 23…947 WER-E3055UV 10/18/2019
Kuwait Pr… 96…083 WER-EW160 10/21/2019
Namibia Ra… +2…107 WER-ED6090UV 10/22/2019
United Kingdom ET… 78…292 WER-E3055UV 10/22/2019
Uganda Yu… 25…614 WER-E3055UV 10/23/2019

Specifications

A0 Size Flatbed UV Printer

Model WER-ET1510UV
Print Technology Drop-On-Demand piezoelectric technology
Head Type Epson tx800 (DX7 and DX5 is optional)
Head Quantity Three tx800 print heads
Nozzles 180 nozzles*6 lines per head
Print size 150cm*100cm (59.1”*39.4”)
Height of Print Head 1.2mm / 2.8mm above media, adjustable
Ink Supply Method Independent continuous ink supply system
Ink Cartridge Ink Type Rigid LED UV ink/ Flexible LED UV ink
Volume 220cc / 440cc ±5cc
Color CMYK LC LM or CMYK+W+Varnish
Media platform Vacuum suction platform includes suction motor
Media Sensor Two sides, front edge & rear edge
Print Speed Production mode 5.2 m²/H (720*1440dpi, 8pass)
Standard mode 3.3 m²/H (720*2160dpi, 12pass)
Ultra quality mode 2.6 m²/H (720*2880dpi, 16pass)
Acceptable Media Width 1550mm~1020mm
Print Interface USB2.0 or HI USB
RIP Software Maintop for Window xp or Window 7. 8.10
Movement mode Front, rear, up and down for printer
Usable Media Glass, metal, pvc, acrylic, wood, ceramic, gifts, crafts packaging, leather, plastic, 3c panels and signs etc.
Lamp type LED lamp (saving energy and environmental friendly)
Power supply 50Hz/60Hz, 220V(±10%)>1.7A
Operation Environment Temperature: 20℃~32℃; Humidity: 35%~80%
Package Dimension 2360mm*2040mm*1450mm
Gross Weight 700kgs



  1. Original Epson print headfor A0flatbed uv printer, CMYK+W+Varnish or 2*(CMYK + W)
  2. Adopt the ball screw for A0flatbed uv printer carriage beam movement, max 16cm for print height
  3. 3. Providingof leduv flexible ink or led uv rigid ink, you can print any designs on any materials
  4. 4. Adopt the advanced variable ink drop technology, min size 3.5pl and max size 27pl, speed 30% faster

Feature

  • Seven colors CMYK+LcLm+W+Varnish
  • Print size: 150cm*100cm (59.1”*39.4”);
    Print height: 16cm max
  • Vacuum suction platform
  • CISS: continuous ink supply system built-in
  • Steel construction structure
  • Dual sets of LED UV lights 395Nm low heat
  • Automatic infrared height detection

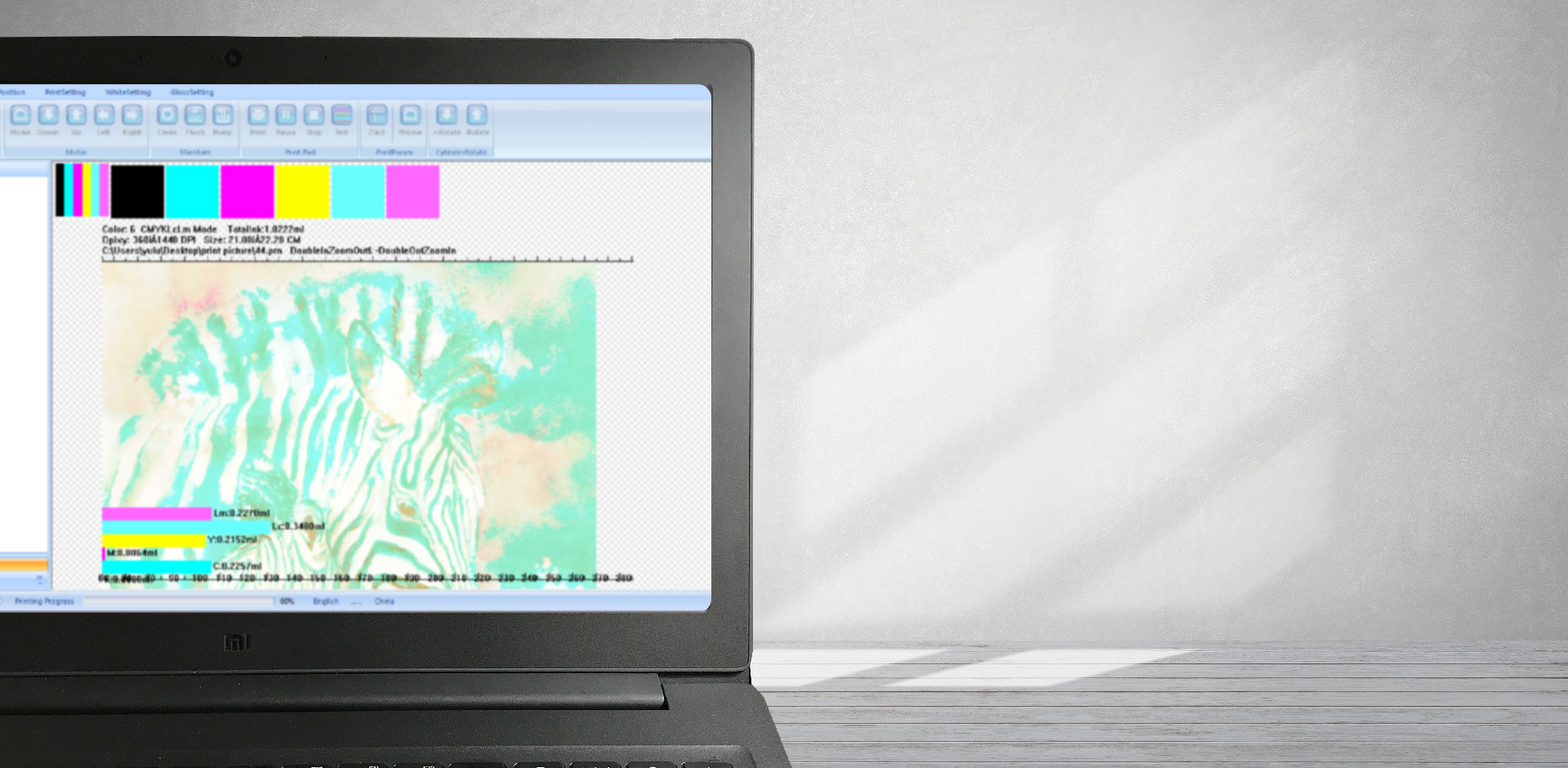

  • Maintop RIP Software

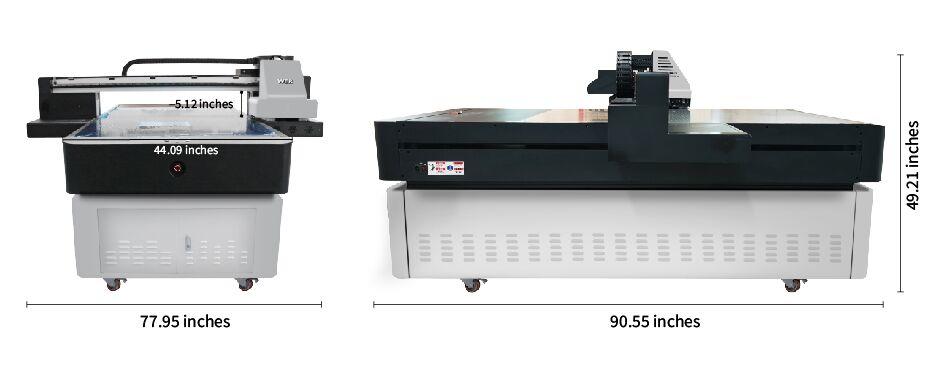

et510uv-size



Highest stability & precision

With the experience that many people desire to take large format uv flatbed printer for wide application, while most of them complained about the high cost, we’ve been thinking about it and hope to find a way out a long time ago.

Now WER-ET1510UV can realize your dream to own a big size uv printer at a quite affordable cost.

Original Epson printing system, which is equipped with original EPSON Piezo inkjet TX800 Printhead.



Easily operated with LCD operation panel.

Ball screw drive system, air sucking platform & powerful servo motor, all these features allow it print in high precision.

Rigid industrial design ensures quality output with physical resolution 1440*2880dpi.

Providing of LED UV rigid ink, and you can print anything on different materials, superior quality.

Adopt the advanced variable ink drop technology, min size 3.5pl and max size 27pl, speed 30% faster.



Quite affordable cost for a big size uv flatbed printer

Large format uv flatbed printer is widely available in the market, but the average cost is more than 15K USD, which is really a big burden to enter into a new business, especially for some small enterprises

Besides its excellent and stable print performance, WER-ET1510UV has a very competitive price and widely acceptable. Compared with mini size uv printer(e.g. A3), you only need to pay 2 – 3 K USD to own it which has a max print size up to 1500*1000mm(59.06”*39.37”).

Well-known reputation

Stable print performance has helps it get very good feedback from customers all over the world.



Rich, Vibrant, Durable Color effect

New, specially formulated, quick-drying UV CURING INK produces amazingly brilliant colors. The inks also provide excellent long-term outdoor durability, scratch and chemical resistance, broad media support and a wide spectrum of color. Not enough? Configurable to dual-CMYK or CMYKWWWW for finer details, smoother gradations and more neutral grays (made possible with Black ink).



Highest stability & precision



Power Up More of Your Time

New, specially formulated, quick-drying UV CURING INK produces amazingly brilliant colors. The inks also provide excellent long-term outdoor durability, scratch and chemical resistance, broad media support and a wide spectrum of color. Not enough? Configurable to dual-CMYK or CMYKWWWW for finer details, smoother gradations and more neutral grays (made possible with Black ink).

Because the WER-ET1510UV doesn’t need constant attention, you can concentrate on other important tasks.

    Here are just a few features that get you through longest print runs:

  • Automatic detection for printer errors
  • Adjustable media height for accurate centering
  • Support of heavy flatbed media
  • Rigid industrial design eliminates vibration for quality printing even at high speed
  • Fully adjustable print heads support various media thicknesses less than 15mm



Instant Drying system

WER-ET15100UV dries prints quickly – even in high-speed mode – for immediate finishing, installation or collection by the take-up system,which we name it UV LED drying system.

    The integrated drying system features:

  • UV LED Light Length of wave is 395 nm, which is energy saving and eco-friendly
  • UV cooling system We use water to cool the UV LED Light while working, and it can save your money for cooling liquid.
  • Print heater to accelerate ink fastness and brightness
  • Dryer to accelerate drying and ensure greater productivity and scratch resistance



Watch Those Printheads Last Longer

WER-ET15100UV original-part patent-printhead cleaning system is designed to significantly reduce buildup around the edges of the print head, decreasing wear and tear and prolonging its lifespan

Accessories

No. Item Unit Discription Warranty Function Price
1 Printhead Pcs EPSON TX800 No Physical resolution control
2 Mainboard Pcs Yes Printer data control
3 PCB board Pcs Yes Driver system
4 Carriage board Pcs Yes Driver system
5 Servo motor Pcs No Drive control
6 Servo motor driver Pcs No Driver software for servo motor
7 Power supply Pcs No Power control
8 UV Lamp water cooling box Pcs No Cooling system
9 Printhead data cable Pcs No Data transfer
10 LED UV Lamp Pcs No UV curing system
11 Ink damper Pcs No Ink filter
12 Ink tube Pcs Yes Ink transfer
13 Ball screw Pcs Yes Driver system
14 Wiper Pcs No Scrape the waste ink
15 Motor belt Pcs No Driver system
16 Carriage belt Pcs No Driver system
17 Cleaning unit Pcs No Cleaning system
18 LCD touch screen Pcs No Touch screen control
19 Ink cartridge Pcs No Ink container
20 Raster reader Pcs No Data transfer
21 Raster sensor Pcs No Data transfer



Price description
For the above items, there are some consumable parts (like printheads) and some Non vulnerable parts, so WER company just offered some of the prices as reference. If you need the exact price, please feel free to contact our sales staff.



No. Discription Quantity
1 USB data cable 1 Free
2 Ink tube 2m Free
3 Ink capping top 1 Free
4 UV ink damper 4 Free
5 Syringe 5 Free
6 Software & user manual 1set Free
7 Power cable 2 Free
8 Funnel 5 Free
9 Ink chip 2 Free
10 Ink chip refresh 1 Free



Attention

1. When the equipment sent to the customers and ready to all install, the first thing is to prepare a voltage regulator, while civil voltage is stable now, but still there will be some floating up and down. Because of the voltage instability, which will have some difficulty in installation. The problem we met mostly may be the connection to computer, or after the online software can’t normally opened, also is the computer power cord unexplained fever, which may affect the equipment! At this time we are going to use multimeter to measure the voltage to solve this matter!

2. When we switch on, machine reset successfully, then we open software. Since the connection when the machine is reset software absorbing ink pad will be a process of down and up, the device is reset, so as to lead to errors instructions, machine reset failed!

3. When using the equipment, printing products if happens to catch up with something not in, so it is better to turn off the software. Because the device under the connection state of software will continue to control flash spray nozzle, after a long time will lead to absorb ink pad ink spill over into the ink pad on the lines below, after a long time will affect the equipment!

4. If our production is completed, shut off the device, the software must be closed first.

5. Before you insert the data cables, turn off the printer power first.

6. Before printing works, you should make sure printheads don’t hit print media, adjusting the nozzle height then send the print task.

7. Often clean the printhead and the printhead stays wet, prevent drying printhead from affecting the service life of the nozzle.

8.the machine doesn’t work, don’t inject ink into the cartridge.

9.if you haven’t operated the machine for a long time, clean up to remove the nozzle with a cleaning fluid stays wet.

Support

RIP Software

Our RIP software can be used for EPSON and many other kinds of brand printer for white ink printing
RIP software latest Version Maintop 6.0
1.CMYK+WWWW printing 2. color enhance printing 3. better printing quality 4. easy operating and fast delivery

Guides videos

About guide video: If you meet any question on installing or printing after you bought this machine, please contact our sales to send you the guide video.

Driver download

wer-et6090-1510-2513.zip

Download

Warranty Information

ALL WER printers come with a standard one-year warranty, with the option for a 2 or 3-year warranty extension contingent on registering your device within 60 days of purchase. By then WER or WER’s agent will send a document to you, everything will take effect after signature, thank you!

Learn More About Your Warranty

Service Contact

We offer excellent Service Contact for all of our inkjet devices.

Learn More

Blog

Follow our blog and discover the latest tips and tricks, and WER news.

Visit Our Blog

Leave a Comment & Inquiry

Your email address will not be published. Required fields are marked.
