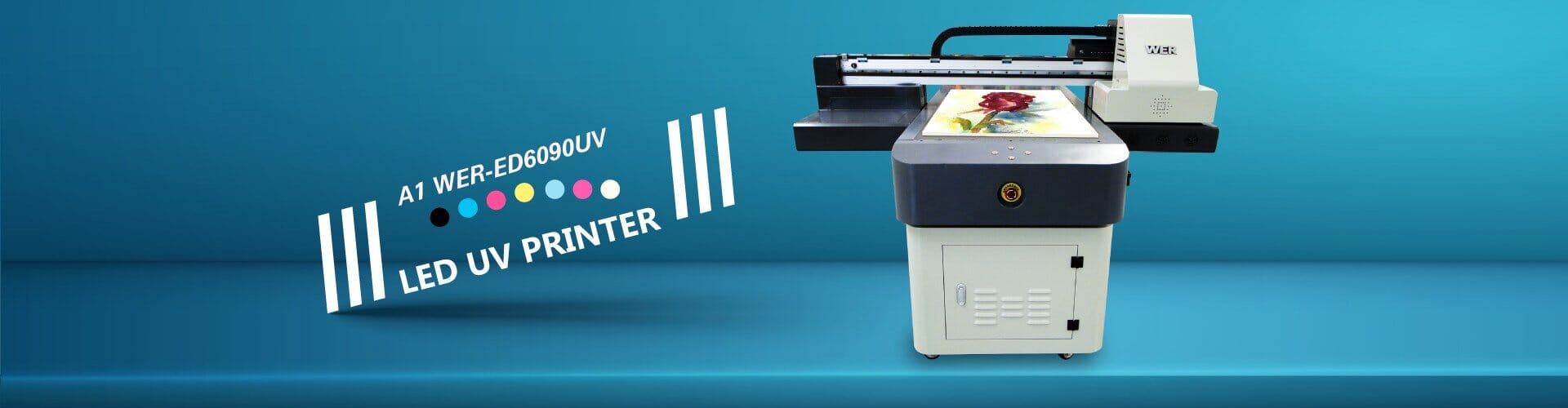

A1-WER-ED6090-LED-UV-PRINTER
A1-WER-ED6090 LED UV PRINTER

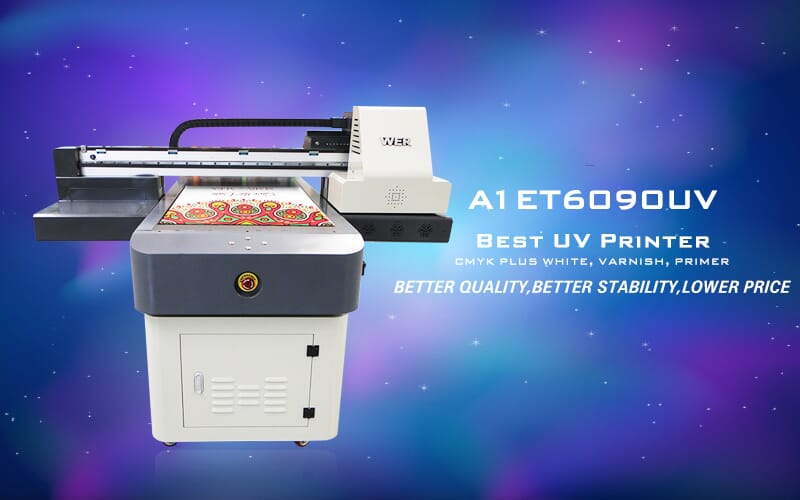

A1 WER-ET6090UV Best UV Printer



High resolution, low cost, easy operation

With CISS System(continous ink supply system),can avoid the printer lacking ink during the printing process and save 50% ink.

Directly print on the cards,phone covers,wood etc., more convenient than the heat transfer printer, and faster than the silk printer.

Do not need the transfer paper, all process can be finished in one step.

Instant drying system.With the help of the UV system,the images printed on nearly all products and can be dried instantly.



2pcs or 3pcs EPSON TX800

With the scan of the infrared ray, all process is fully automatic, that is why it also be called as the “LAZY PRINTER”

Can print the white ink and 3d embossed image.(can print on any dark background products)



More Applications To Click “HERE

Stone Printing

Stone Printing
Makes your life different by printing on ceramic, marble, stones,etc.

Refrigerator Magnets

Refrigerator Magnets
Small decoration can give you so much fun of life

Raised UV Printing

Raised UV Printing
Observing beautiful surface treatment, stereo textures, or 3D embossment effects to create an extraordinary new dimension of “watch the color”.

Aluminum Outdoor Signs

Aluminum Outdoor Signs
Print directly on copper, iron, aluminum, home decor,aluminum alloy,etc.

Wooden Gift Box

Wooden Gift Box
A well-designed gift box means too much of love

Glass Decoration

Glass Decoration
Applying our varnish inks,you can print on glass home decoration products, jewelry display rack, machine panel, bathroom supplies, home supplies, office supplies, hotel supplies and acrylic products

The Awesome Effects Of ECO UV Ink

Touch the Color with varnish ECO-UV Ink

Facing gloss/matte surface treatment, realistic textures, or 3D embossed effects to add an incredible new dimension of “touch the color”. Create your own special finishes or choose from our texture-designed patterns in our WER COLOR System.

Print-detail

Print-effect

Advanced Ink Printing

Print pictures with stable color and astonishing detail on a good range of promotional gifts.

(1)Produce amazing pictures with CMYK, White & Gloss ECO-UV inks
(2)White ink is a brilliant genius color, or to ensure that colors occur on dark or clear objects
(3)Optional Primer increases efficiency by preparing the surface of materials like acrylic and plastic for full-color customization
(4)A Continuous Ink Supply System keeps ink pigments settling in the ink lines for smooth consistency and density
(5)Automatic nozzle cleaning function ensures extended service life

* For perfect effects, it is strongly advised that users test for adhesion to specific objects before massive final production.

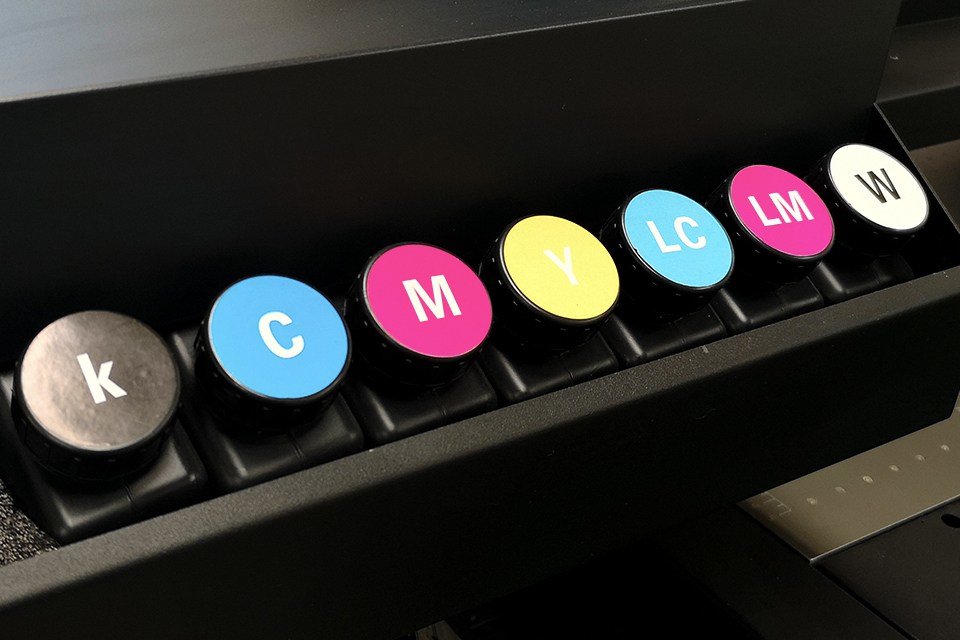

Ink-box

A smart, reasonable, and wonderful Machine Experience

With double sets of low-heat UV LED lights, and self-cleaning ink function, the newly-designed A0 WER-ET1510UV Glass Prints Flatbed Printer is easy to operate and performs clean and cool with a safe operation. In addition to reducing additional machine movements of previous models to give you a more efficient operation, it offers new design advantages to simplify your print process.

uv LED light

HEAD CLEANING UNIT

Removes any ink remaining on the printheads and cleans the printhead surface to maintain the health and ink cost-efficiency of your printer.

Printhead cleaning unit

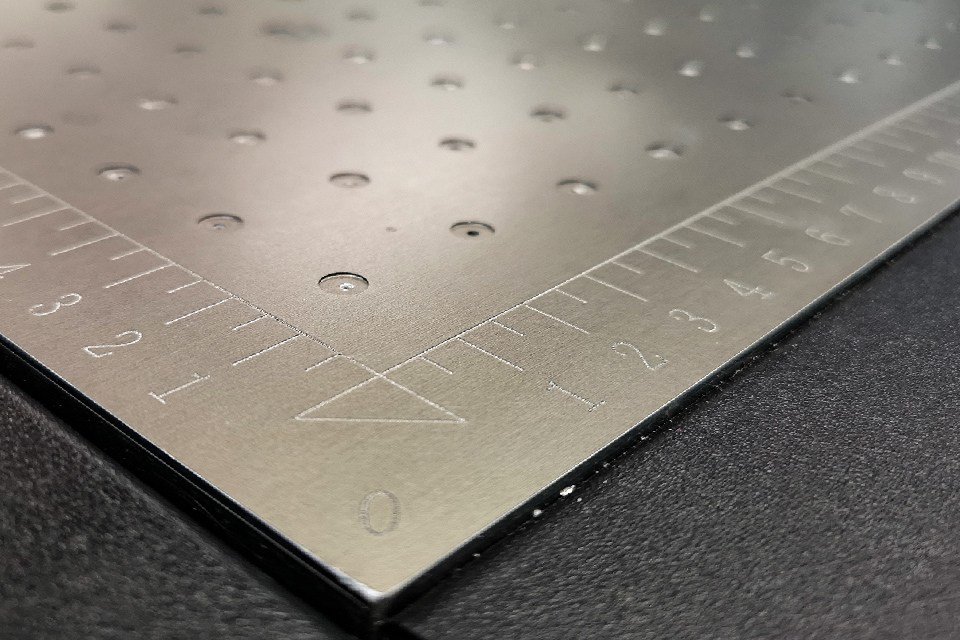

EASY-POSITIONING

Printing platform precise calibration mark,which is easy to simplify your set-up and the alignment of items for printing.

Calibration

NOZZLE SHIELD FUNCTION

If a nozzle on the printhead is clogged and misfiring, you can reduce losses with the ability to turn off a specific nozzle band to allow continued production.

uv Printhead
Buyer’s Country Name Telephone Product Type Transaction Date

Bolivia Edgar Lla*** 0059***4142 WER-E3055T 04/30/2019
Australia Peter Sma*** 617***4652 WER-ET6090UV 05/05/2019
Guatemala Mario Eug*** ‘0050***993 WER-ES3202 05/06/2019
Czech Republic Jarda Sme*** 420***5231 WER-ET6090UV 05/07/2019
Uganda Mr. John ‘0025***464 WER-ED6090T 05/08/2019
Kazakhstan Mr. Nur ‘0077***663 WER-E3055UV 05/09/2019
Romania Diana ‘004***0401 WER-E3055UV 05/11/2019
Philippines Mark ‘0063***028 WER-EW1802 05/12/2019
Uzbekistan Abu Baki*** ‘009***1593 WER-ED6090T 05/15/2019
Zambia Toddy ‘0026***524 WER-ES1802 05/17/2019
Kenya Michael J. 254***1020 WER-ES160 05/18/2019
Pakistan Joy*** Basu ‘0092***744 WER-ES1802 05/18/2019
U.S.A Joe ‘001***8533 WER-K3208I 05/20/2019
Russia Armen Mach*** 7-91***846 WER-ED6090UV 05/23/2019

A1 Size Flatbed UV Printer

Model WER-ET6090UV
Print Technology Drop-On-Demand piezoelectric technology
Head Type Epson tx800 (DX7 and DX5 is optional)
Head Quantity Three tx800 print heads
Nozzles 180 nozzles*6 lines per head
Print size 60cm*90cm (23.6”*35.4”)
Height of Print Head 1.2mm / 2.8mm above media, adjustable
Ink Supply Method Independent continuous ink supply system
Ink Cartridge Ink Type Rigid LED UV ink/ Flexible LED UV ink
Volume 220cc / 440cc ±5cc
Color CMYK or CMYK+W+Varnish
Media platform Vacuum suction platform includes suction motor
Media Sensor Two sides, front edge & rear edge
Print Speed Production mode 90 sec for A4 (360*1440dpi, 4pass)
Standard mode 180 sec for A4 (720*1080dpi, 6pass)
Ultra quality mode 360 sec for A4 (720*1440dpi, 8pass)
Acceptable Media Width 620mm~950mm
Print Interface USB2.0 or HI USB
RIP Software Maintop for Window xp or Window 7. 8.10
Movement mode Front, rear, up and down for printer
Usable Media Glass, metal, pvc, acrylic, wood, ceramic, gifts, crafts packaging, leather, plastic, 3c panels and signs etc.
Lamp type LED lamp (saving energy and environmental friendly)
Power supply 50Hz/60Hz, 220V(±10%)>1.7A
Operation Environment Temperature: 20℃~32℃; Humidity: 35%~80%
Package Dimension 1780mm*1670mm*1380mm
Gross Weight 400kgs



  1. Original Epson print headfor A1flatbed uv printer, CMYK+W+Varnish or 3*CMYK LC LM
  2. Adopt the ball screw for A1flatbed uv printer carriage beam movement, max 16cm for print height
  3. 3. Providing of leduvflexible ink or led uv rigid ink, you can print any designs on any materials
  4. 4. Adopt the advanced variable ink drop technology, min size 3.5pl and max size 27pl, speed 30% faster

Highest stability & precision

With the experience that many people desire to take large format uv flatbed printer for wide application, while most of them complained about the high cost, we’ve been thinking about it and hope to find a way out a long time ago.

Now WER-ED6090UV can realize your dream to own a big size uv printer at a quite affordable cost.

Original Epson printing system, which is equipped with original EPSON Piezo inkjet F186000 Printhead with 180 nozzles per channel.

Easily operated with LCD operation panel.

Ball screw drive system, air sucking platform & powerful servo motor, all these features allow it print in high precision.

Rigid industrial design ensures quality output with physical resolution 1440*2880dpi.

Providing of LED UV rigid ink, and you can print anything on different materials, superior quality.

Adopt the advanced variable ink drop technology, min size 3.5pl and max size 27pl, speed 30% faster.



Quite affordable cost for a big size uv flatbed printer

Large format UV flatbed printer is widely available in the market, but the average cost is more than 15K USD, which is really a big burden to enter into a new business, especially for some small enterprises

Besides its excellent and stable print performance, WER-ET6090UV has a very competitive price and widely acceptable. Compared with mini size UV printer(e.g., A3), you only need to pay 2 – 3 K USD to own it which has a max print size up to 60 × 90 cm.

Well-known reputation

Stable print performance has helps it get very good feedback from customers all over the world.

Rich, Vibrant, Durable Color effect

New, specially formulated, quick-drying UV CURING INK produces amazingly brilliant colors. The inks also provide excellent long-term outdoor durability, scratch and chemical resistance, broad media support and a wide spectrum of color. Not enough? Configurable to dual-CMYK or CMYKWWWW for finer details, smoother gradations and more neutral grays (made possible with Black ink).

Highest stability & precision



Power Up More of Your Time

New, specially formulated, quick-drying UV CURING INK produces amazingly brilliant colors. The inks also provide excellent long-term outdoor durability, scratch and chemical resistance, broad media support and a wide spectrum of color. Not enough? Configurable to dual-CMYK or CMYKWWWW for finer details, smoother gradations and more neutral grays (made possible with Black ink).

Because the WER-ED6090UV doesn’t need constant attention, you can concentrate on other vital tasks.

    Here are just a few features that get you through longest print runs:

  • Automatic detection for printer errors
  • Adjustable media height for accurate centering
  • Support of heavy flatbed media
  • Rigid industrial design eliminates vibration for quality printing even at high speed
  • Media thicknesses less than 15mm



Instant Drying system

WER-ED6090UV dries prints quickly – even in high-speed mode – for immediate finishing, installation or collection by the take-up system,which we name it UV LED drying system.

    The integrated drying system features:

  • UV LED Light Length of wave is 395 nm, which is energy saving and eco-friendly
  • UV cooling system We use water to cool the UV LED Light while working, and it can save your money for cooling liquid.
  • Print heater to accelerate ink fastness and brightness
  • Dryer to accelerate drying and ensure greater productivity and scratch resistance



Watch Those Printheads Last Longer

WER-ED6090UV original-part patent-printhead cleaning system is designed to significantly reduce buildup around the edges of the print head, decreasing wear and tear and prolonging its lifespan

No. Item Unit Discription Warranty Function Price
1 Printhead Pcs EPSON TX800 No Physical resolution control
2 Mainboard Pcs Yes Printer data control
3 PCB board Pcs Yes Driver system
4 Carriage board Pcs Yes Driver system
5 Servo motor Pcs No Drive control
6 Servo motor driver Pcs No Driver software for servo motor
7 Power supply Pcs No Power control
8 UV Lamp water cooling box Pcs No Cooling system
9 Printhead data cable Pcs No Data transfer
10 LED UV Lamp Pcs No UV curing system
11 Ink damper Pcs No Ink filter
12 Ink tube Pcs Yes Ink transfer
13 Ball screw Pcs Yes Driver system
14 Wiper Pcs No Scrape the waste ink
15 Motor belt Pcs No Driver system
16 Carriage belt Pcs No Driver system
17 Cleaning unit Pcs No Cleaning system
18 LCD touch screen Pcs No Touch screen control
19 Ink cartridge Pcs No Ink container
20 Raster reader Pcs No Data transfer
21 Raster sensor Pcs No Data transfer



Price description
For the above items, there are some consumable parts (like printheads) and some Non-vulnerable parts, so WER company just offered some of the prices as a reference. If you need the exact price, please feel free to contact our sales staff.



No. Discription Quantity
1 USB data cable 1 Free
2 Ink tube 2m Free
3 Ink capping top 1 Free
4 UV ink damper 4 Free
5 Syringe 5 Free
6 Software & user manual 1set Free
7 Power cable 2 Free
8 Funnel 5 Free
9 Ink chip 2 Free
10 Ink chip refresh 1 Free



Attention

1. When the equipment sent to the customers and ready to all install, the first thing is to prepare a voltage regulator, while civil voltage is stable now, but still, there will be some floating up and down because of the voltage instability, which will have some difficulty in installation. The problem we met mostly may be the connection to the computer, or after the online software can’t normally be opened, also is the computer power cord unexplained fever, which may affect the equipment! At this time we are going to use a multimeter to measure the voltage to solve this matter!

2. When we switch on, machine reset successfully; then we open software. Since the connection when the machine is reset software absorbing ink pad will be a process of down and up, the device is reset, to lead to errors instructions, machine reset failed!

3. When using the equipment, printing products if happen to catch up with something not in, so it is better to turn off the software. Because the device under the connection state of software will continue to control flash spray nozzle after a long time will lead to absorb ink pad ink spill over into the ink pad on the lines below, after a long time affects the equipment!

4. If our production is completed, shut off the device, the software must be closed first.

5. Before you insert the data cables, turn off the printer power first.

6. Before printing works, and you should make sure printheads don’t hit print media, adjusting the nozzle height then send the print task.

7. Often clean the printhead and the printhead stays wet, prevent drying printhead from affecting the service life of the nozzle.

8.the machine doesn’t work, don’t inject ink into the cartridge.

9.if you haven’t operated the machine for a long time, clean up to remove the nozzle with a cleaning fluid stays wet.

RIP Software

Our RIP software can be used for EPSON and many other kinds of brand printer for white ink printing
RIP software latest Version Maintop 6.0
1.CMYK+WWWW printing 2. color enhance printing 3. better printing quality 4. easy operating and fast delivery

Guides videos

About guide video: If you meet any question on installing or printing after you bought this machine, please contact our sales to send you the guide video.

Driver download

wer-et6090-1510-2513.zip

Download

Warranty Information

ALL WER printers come with a standard one-year warranty, with the option for a 2 or 3-year warranty extension contingent on registering your device within 60 days of purchase. By then WER or WER’s agent will send a document to you, everything will take effect after signature, thank you!
