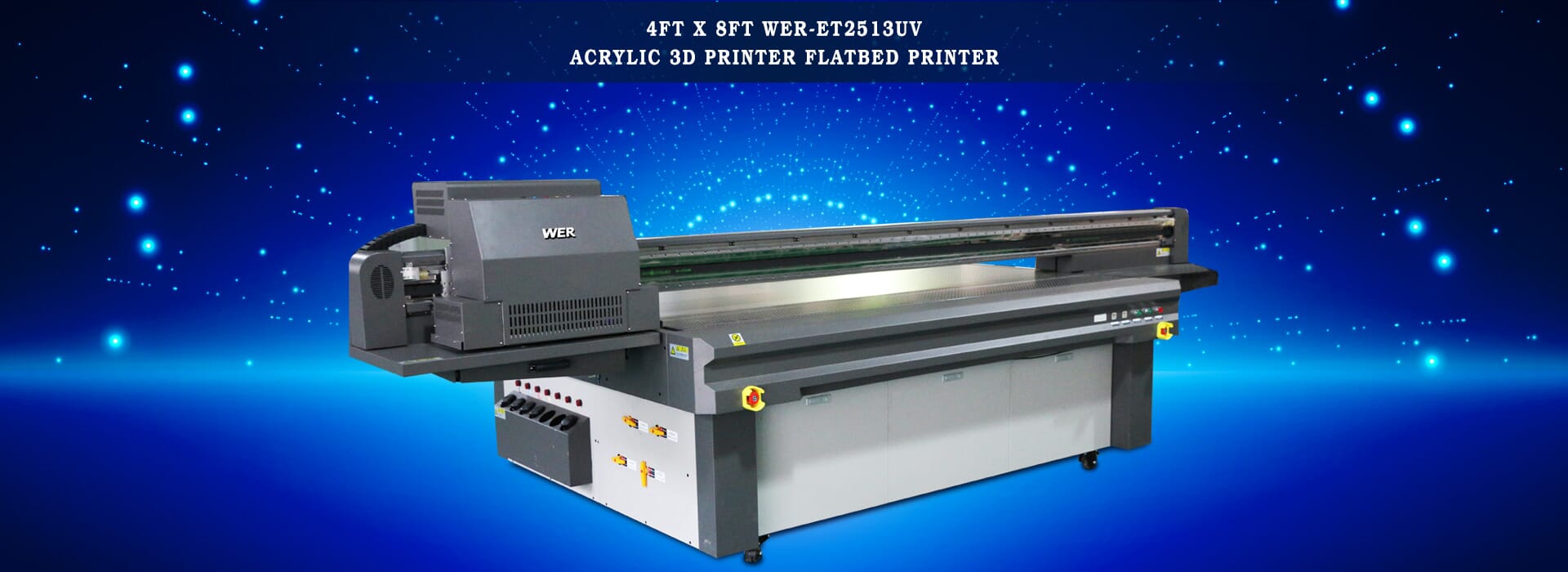

4ft x 8ft WER-ET2513UV Acrylic 3D Printer Flatbed Printer
A new high-performance big format entry-level model flatbed printer – expanding possibilities in the printing business.
WER-ET2513UV is the big format flatbed printer equip with industrial 3 EPSON TX800 printheads. It offers the ability to produce a diverse range of prints for background wall, floorboards, ceramic tiles and other interior decoration applications, expanding the possibilities in the big size materials printing business.
United KingdomCh… 07…317 WER-ET2513UV 09/02/2023
MexicoJo… +5…642 WER-E4880UV 09/04/2023
Burkina FasoRa… 00…989 WER-ET2513UV 09/05/2023
PakistanSa… +9…572 WER-E3055UV 09/05/2023
RussiaPa… 07…321 WER-E3055UV 09/06/2023
IranPr… +9…149 WER-ET1510UV 09/07/2023
SerbiaVl… +3…452 WER-ED6090UV 09/08/2023
NamibiaIs… +2…021 WER-750T 09/09/2023
IndonesiaJe… 06…704 WER-ES3204 09/11/2023 - United KingdomLo… 07…714 WER-E3055UV 09/12/2023
IndiaSi… +9…244 WER-ET1510UV 09/13/2023 - Namibiac�… 25…721 WER-ET6090UV 09/15/2023
- IndiaAm… 09…789 WER-E3055UV 09/16/2023
- MexicoDa… +5…333 WER-K5304I 09/19/2023
ZimbabweRo… +2…071 WER-ET6090UV 09/20/2023
EcuadorCa… 59…549 WER-E3055UV 09/21/2023
TurkeyNa… 07…123 WER-ET6090UV 09/22/2023
ZambiaAt… +2…189 WER-E3055UV 09/23/2023
Sierra LeoneMo… +2…931 WER-ET2513UV 09/26/2023 - Sierra LeoneCA… 34…211 WER-ED6090UV 09/27/2023
AlgeriaCH… 00…117 WER-ET2513UV 09/29/2023
BelgiumMa… 32…433 WER-K5304I 09/29/2023
Trinidad and TobagoHo… 07…828 WER-ET1510UV 09/30/2023
IraqBa… +9…849 WER-E3055UV 10/07/2023
CanadaAb… 01…435 WER-ET1510UV 10/08/2023
GermanyVi… +4…339 WER-E3055UV 10/10/2023 - RussiaBo… 07…021 WER-ET6090UV 10/12/2023
UkraineHo… +3…158 WER-E3055UV 10/14/2023 - NamibiaTa… +2…387 WER-ET1510UV 10/14/2023
- BelgiumMa… 03…881 WER-E3055UV 10/15/2023
- Belgiuman… 32…824 WER-ES3204 10/17/2023
United StatesFe… +1…543 WER-ET6090UV 10/18/2023 - IranFa… 98…357 WER-G2513UV 10/19/2023
- Trinidad and TobagoOg… 07…072 WER-E4880UV 10/20/2023
GeorgiaZo… 09…910 WER-E3055UV 10/20/2023
Specifications
Large Size Flatbed UV Printer
| Model | WER-ET2513UV | WER-EF2513UV | |
| Print Technology | Drop-On-Demand piezoelectric technology | ||
| Head Type | Epson tx800 (DX7 and DX5 is optional) | ||
| Head Quantity | Three tx800 print heads | Four tx800 print heads | |
| Nozzles | 180 nozzles*6 lines per head | ||
| Print size | 250cm*130cm (8ft x 4ft) | ||
| Height of Print Head | 1.2mm / 2.8mm above media, adjustable | ||
| Ink Supply Method | Independent continuous ink supply system | ||
| Ink Cartridge | Ink Type | Rigid LED UV ink/ Flexible LED UV ink | |
| Volume | 220cc / 440cc ±5cc | ||
| Color | CMYK LC LM or CMYK+W+Varnish | ||
| Media platform | Vacuum suction platform includes suction motor | ||
| Media Sensor | Two sides, front edge & rear edge | ||
| Print Speed | Draft mode | 8 m²/H | 8 m²/H |
| Mode of production | 6 m²/H | 6 m²/H | |
| High quality mode | 4 m²/H | 4 m²/H | |
| Acceptable Media Width | 2500mm~1300mm | ||
| Print Interface | USB2.0 or HI USB | ||
| RIP Software | Maintop for Window xp or Window 7. 8.10 | ||
| Movement mode | Front, rear, up and down for printer | ||
| Usable Media | Glass, metal, pvc, acrylic, wood, ceramic, gifts, crafts packaging, leather, plastic, 3c panels and signs etc. | ||
| Lamp type | LED lamp (saving energy and environmental friendly) | ||
| Power supply | 50Hz/60Hz, 220V(±10%)>1.7A | ||
| Operation Environment | Temperature: 20℃~32℃; Humidity: 35%~80% | ||
| Package Dimension | 3920mm*1920mm*1480mm | ||
| Gross Weight | 1000kgs | 1000kgs | |
- Epson printhead makes the printer long time stable workwith high resolution
- Adopt HIWIN linear rail guider system enable machine low noise and stable running
- Equipped with the servo motor, more precise running, more stable print and longer life
- Providing of led uv flexible ink or led uv rigid ink, you can print any designs on any materials
Feature
All steel Frame structure
Using 5mm thick GB 80mm*80mm square tube under the expected, the triangle law of welding structure, base solid deformation. The base plane with high precision gantry milling machine, milling and drilling plane error is small, highly stable and high-precision.
Uniform adsorption platform
Honeycomb partition type adsorption, inlet volume controlling for different media makes printing easier and more efficient. Saves the motor less, low energy consumption strong adsorption. The whole piece of aluminum plate laying smoothness high, bearing is strong.
High Precision mute linear rail guide
Taiwan side rail of silver, long life service, high stability decreases noise while printing. Print length of 2.5meters, the width of 1.3mters, meet the requirements of different sizes of different industries.
High Performance,Rich, Vibrant, Durable Color effect,Price ratio
Adopt 3pcs EPSON TX800 printheads, whose speed can reach 100 square per hour, and with high firing frequency, high print speed,resolution and saturation much better than similar products on the market. Negative pressure system for more smooth ink,ink nozzles is more durable, post-production cost saving, more saving rate is as high as 50%.
Accessories
| No. | Item | Unit | Discription | Warranty | Function | Price |
| 1 | Printhead | PCs | EPSON TX800 | No | Physical resolution control | |
| 2 | ink damper | pcs | No | Ink filter | $3.29 | |
| 3 | Ink tube | m | No | Ink transfer | ||
| 4 | Decoder Chip | pcs | No | Ink color control chip | $3.99 | |
| 5 | Wiper | pcs | No | Scrape the waste ink | $3.29 | |
| 6 | Ink cap top | pcs | No | Printhead moisturizing | $12.99 | |
| 7 | Syringe | pcs | No | Absorb ink when the ink tube is empty | ||
| 8 | Power cable | pcs | Yes | Power supply | ||
| 9 | Printhead data cable | pcs | No | Printhead data transfer | $2.49 | |
| 10 | Short motor belt | pcs | No | Physical resolution control | ||
| 11 | Raster strip | PCs | No | Printing calibration calculation | $9.99 | |
| 12 | Drag chain | PCs | Yes | Printheadhead position transfer | ||
| 13 | USB cable | m | Yes | Computer connection with printer | ||
| 14 | White ink cycle pump | PCs | No | Front & back position control | ||
| 15 | Front & back sensor | PCs | No | Physical resolution control | ||
| 16 | Printhead | PCs | No | Store ink | ||
| 17 | mainboard | PCs | Yes | Printer data control | $349.99 | |
| 18 | I/O board | PCs | Yes | Input & output board | $159.99 | |
| 19 | Y motor | PCs | Yes | Y drive control | ||
| 20 | Z motor | PCs | Yes | Z drive control | ||
| 21 | X motor | PCs | Yes | X drive control | ||
| 22 | LED UV Lamp | PCs | No | UV Drying system | ||
| 23 | Water cooling box | PCs | No | Water cooling system |
Price description
For the above items, there are some consumable parts (like printheads) and some Non vulnerable parts, so WER company just offered some of the prices as reference. If you need the exact price, please feel free to contact our sales staff.
| No. | Discription | Quantity | |
| 1 | 3*2mm Black ink tube | 2 m | Free |
| 2 | Black ink damper | 2 pcs | Free |
| 3 | Funnel | 5 pcs | Free |
| 4 | Ink cartridge chip | 1 pc | Free |
| 5 | Syringe 10ML | 6 pcs | Free |
| 6 | Syringe 50ML | 3pcs | Free |
| 7 | Decoder | 1 pc | Free |
| 8 | Software and Dongle | 1 set | Free |
| 9 | Cotton swab stick | 6 pcs | Free |
| 10 | Power cable | 1 pc | Free |
Attention
If you have bought our WER printers, in order to avoid the printhead and the mainboard damage because of some wrong operation, you should install the printhead correctly in operation and maintenance according to the following way. And refer to the instructions, or under the guidance of the professional engineers operation.
| Problem Symptoms | Resolutions |
| Static electricity is too high, which will burn out the printer head. | A:The Operator need to mak electrostatic? eliminating treatment and wear the Anti-static devices if possible to prevent the high static load form burning the circuit board inside of the printer head. B: During installation, try not to touch the surface of print head directly. |
| Printer head will be burned out if the USB line linked the printer head incorrectly | Please contact professional technician if you cannot install USB line of the printer head by following the original way of machine or operating instructions. |
| You should check if the outside voltage is stable and the input voltage is matched with the machine | You should check if the outside voltage is stable and the input voltage is matched with the machine. |
| You have to take of the printer head and clean it carefully. | You have to take of the printer head and clean it carefully. |
| There is no response after starting up. | Check power plug fuse |
Support
RIP Software
Our RIP software can be used for EPSON and many other kinds of brand printer for white ink printing
RIP software latest Version Maintop 6.0
1.CMYK+WWWW printing 2. color enhance printing 3. better printing quality 4. easy operating and fast delivery
Guides videos
About guide video: If you meet any question on installing or printing after you bought this machine, please contact our sales to send you the guide video.
Warranty Information
ALL WER printers come with a standard one-year warranty, with the option for a 2 or 3-year warranty extension contingent on registering your device within 60 days of purchase. By then WER or WER’s agent will send a document to you, everything will take effect after signature, thank you!
