Innovation to make you more profitable

Shanghai WER large format roll to roll direct to textile printers have played an instrumental role in leading the analog to digital revolution. From the instruction of first small size Desktop and Flatbed T-shirt printer to the latest large format roll to roll textile printers, WER printers continue to expand the possibilities of digital print. Today, our integrated system will help your business reach new levels of competitiveness, profitability and growth.

Buyer’s Country Name Telephone Product Type Transaction Date

ColombiaIM… 57…105 WER-ET1510UV 1/27/2021
IsraelPA… 97…305 WER-E4880UV 2/5/2021
ItalyRa… 33…518 WER-ET6090UV 2/8/2021
PanamaWa… 44…092 WER-ET6090UV 2/10/2021
South AfricaWa… 67…741 WER-ET6090UV 2/11/2021
South AfricaWa… 67…741 WER-E3055T 2/11/2021
South AfricaWa… 67…741 WER-H200T 2/11/2021
CanadaIn… 72…724 WER-G2513UV 2/12/2021
Czech RepublicDi… 77…225 WER-ET6090UV 3/3/2021
United KingdomMi… 77…170 WER-E3055UV 3/4/2021
Sierra LeoneGe… 78…644 WER-ES1802 3/8/2021
SpainOm… 65…142 WER-ES1802 3/10/2021
GreeceKA… 23…683 WER-ET6090UV 3/11/2021
KenyaAu… 72…020 WER-ES1802 3/12/2021
MexicoZU… 55…497 WER-ED6090UV 3/12/2021
UgandaRA… 78…194 WER-ES1801 3/16/2021
GermanySi… 17…655 WER-ET6090UV 3/18/2021
LithuaniaVi… 37…717 WER-ET6090UV 3/18/2021
Bolivialu… 60…406 WER-ES1801 3/20/2021
Saudi ArabiaHa… 50…428 WER-ES1802 3/22/2021
PanamaWa… 44…092 WER-ED6090UV 3/24/2021
GreeceAn… 23…291 WER-ET6090UV 3/24/2021
AustraliaMa… 41…748 WER-E3055UV 4/2/2021
CameroonKE… 67…666 WER-ES1801 4/2/2021
USAKe… 25…212 WER-E4880UV 4/5/2021
GhanaAp… 24…604 WER-ES1801 4/6/2021
MexicoJA… 1 …070 WER-ES1802 4/8/2021
BoliviaEl… 72…968 WER-ES1801 4/9/2021
AustraliaAn… 24…604 WER-ES160 4/12/2021
SloveniaAO… 41…144 WER-E3055UV 4/13/2021
BoliviaCr… 75…636 WER-ES1801 4/13/2021
ZimbabweAl… 71…643 WER-ES160 4/16/2021
ChilePe… 9 …851 WER-E4880UV 4/16/2021
USAGi… 56…775 WER-E6090T 4/17/2021
MexicoMr… 81…600 WER-K3204I 4/19/2021

Specifications

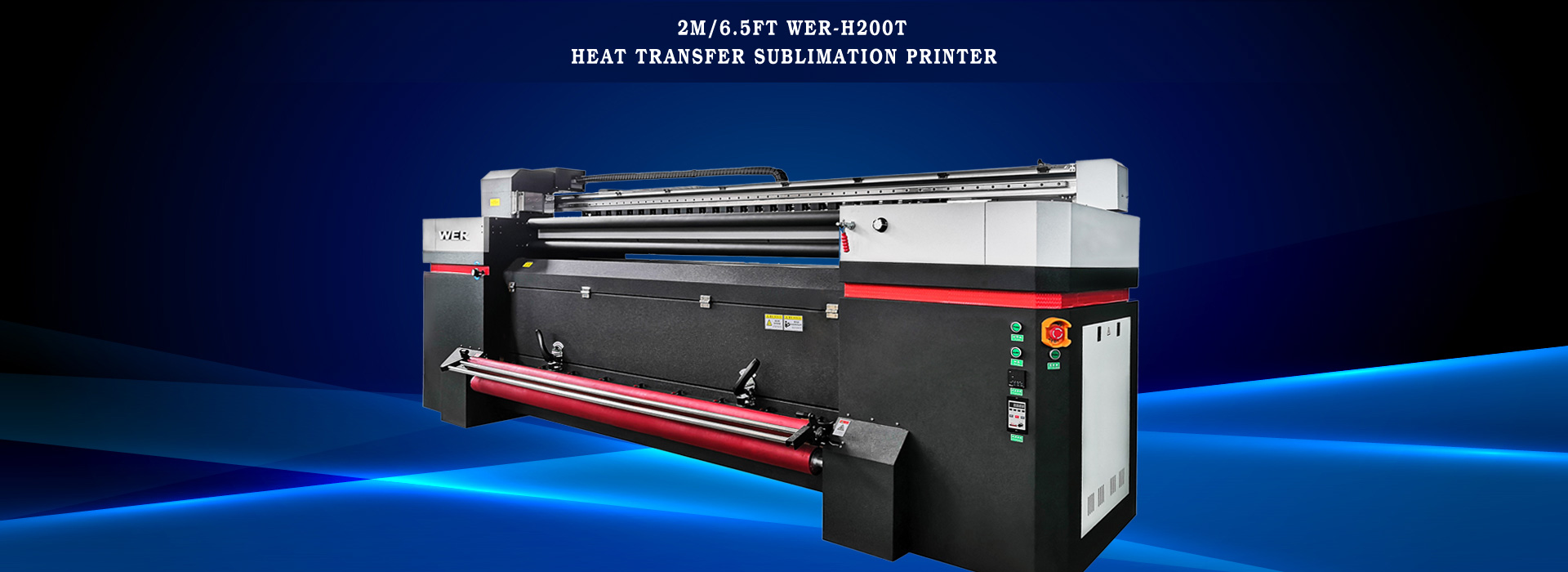

2m/6.6ft WER-H200T Dye Sublimation Printer

Model WER-H200T
Printhead Epson 4720(2/3)Pcs Optional
Media flag cloth,banner cloth,chemical fiber textiles,poster
Width 2m
Operation environment temperature:20-30℃,humidity 60-70%
Thickness ≤ 3mm
Print speed Mode Double printheads Three printheads
2 pass 90 ㎡/h 110 ㎡/h
3 pass 60 ㎡/h 90 ㎡/h
4 pass 40 ㎡/h 60 ㎡/h
Lamp LED UV lamp
Inks sublimation C M Y K
Photo format TIFF/JPG/EPS/PDF
Packing size 3500*650*750mm
Dimension 3300*520*630mm
RIP software Maintop/PHOTOPRINT
System Win 7/8/10 64-bit Ultimate / Professional;CPU:INTEL i5 or above;RAM 8G;Hard Disk:SATA 500;Hard disk format:NTFS;Optical drive:DVD;C drive space:≥100G
Power 6000W
Gross weight / net weight 800kg/700kg

Feature

Multi-functional printing

  • 1. Heavy duty roller driving structure, film and durable body, operating with high resolution, and long service life.
  • 2. Adopts double epson print head, print maximum width up to 1800mm, print speed 35 square meters per hour
  • 3. 4colors (C,M,Y,K) printing with 1440dpi reach perfect printing.
  • 4. The output image is non-fading, water proof and scratch proof.
  • 5. Acceptable Material: Roll Fabric, textile, etc.



Direct sublimation printing system

With our professional direct sublimation printing ink, customers do not need to print product with old-fashioned heat transfer sublimation technology. Which takes too much time and printing cost in the past, all you need is to enjoy the faster speed of our direct printing technology.



Highest stability & precision



Automatic heating system built-inside

One key heating system can speed up your printing process, and save labor cost at the same time.





Accessories

No. Item Unit Discription Warranty Function Price
1 Printhead Pcs Vulnerable parts Physical resolution control
2 Ink damper Pcs Vulnerable parts Ink filter
3 Ink tube m Ink transfer
4 Wiper Pcs Vulnerable parts Scrape the waste ink
5 Ink cap top Pcs Vulnerable parts Printhead moisturizing
6 Syringe Pcs Absorb ink when the ink tube is empty
7 Power cable Pcs Power supply
8 Printhead data cable Pcs Vulnerable parts Printhead data transfer
9 Short motor belt Pcs Motor drive
10 Raster strip Pcs Vulnerable parts Printing calibration calculation
11 Drag chain Pcs Printheadhead position transfer
12 USB cable m Computer connection with printer
13 Sensor reader Pcs Sensor control
14 Ink cartridge Pcs Store ink
15 Mainboard Pcs Printer data control
16 Head Board Pcs Input & output board
17 Y motor Pcs Y drive control
18 220 Power supply Pcs Power supply
19 X motor Pcs X drive control



Price description
For the above items, there are some consumable parts(like printheads)and some Non vulnerable parts, so WER company just offered some of the prices as reference. If you need the exact price, please feel free to contact our sales staff.



No. Discription Unit Quantity
1 Ink Tank 500ml 4
2 Ink damper Standard 2
3 Syringe Standard 4
4 Copper Cap small 4
5 Copper Cap big 4
6 Quick Connector 4mm 10sets
7 Power cable 3
8 Driver software 1
9 Screws 3X8/4X8 20
10 Ink tube 3.8 2m
11 Ink tube 2.8 2m
12 Ink cap top 2
13 Ink pump 2
14 Printhead data cable 2
15 Raster strip 1
16 Swab rod 3
17 Y shape three direct links 1 package



Attention

1.Do not insert the printhead cable in a wrong position, in case of nozzle burn out.

2.In case of a sudden carriage crash, you should avoid nothing to stop the printhead carriage.

3.Be careful when you refill the inks, you should use a funnel to add in case that ink falls on the ground.

4.Printhead cleaning solution should be used when cleaning, in case of the printhead clogging.

5.Before operating the machine, you should read the instruction first, in order to avoid improper operation.

Support

RIP Software

Our RIP software can be used for EPSON and many other kinds of brand printer for white ink printing
RIP software latest Version Maintop 6.0
1.CMYK+WWWW printing 2. color enhance printing 3. better printing quality 4. easy operating and fast delivery

Guides videos

About guide video: If you meet any question on installing or printing after you bought this machine, please contact our sales to send you the guide video.

Driver download

DX5 E3202T Heat Transfer Sublimation Printer.zip

Download

Warranty Information

ALL WER printers come with a standard one-year warranty, with the option for a 2 or 3-year warranty extension contingent on registering your device within 60 days of purchase. By then WER or WER’s agent will send a document to you, everything will take effect after signature, thank you!
